DESCRIPTION

Basic Info

Model NO.	EW
Condition	New
Maximum Lifting Weight	150-200t
Maximum Lifting Height	>40m
Operation Form	Remote Control
Main Girder Form	Double Girder
Product Name	Rtg Gantry Crane
Color	Customers′ Demand
Power Source	3 Phase 380V 50Hz
Control Method	Remote Control
Crane Feature	Easy Operated Gantry Crane
Lifting Speed	5-25m/Min
Lifting Capacity	1 Ton-100ton
Application	Lifting Goods
After Warranty Service	Online Support
Transport Package	Packed in Wooden Case
Specification	20 ton ----200 ton
Trademark	EW
Origin	Henan
Production Capacity	20 Set/Year

Packaging & Delivery

Package size per unit product 20000.00cm * 10000.00cm * 10000.00cm Gross weight per unit product 3000.000kg

Product Description

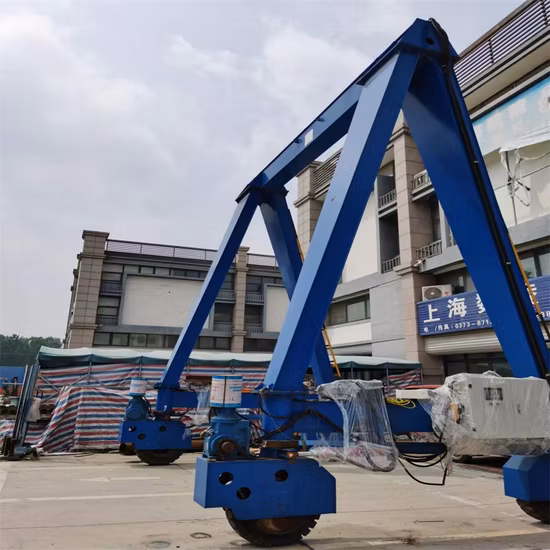

Product DescriptionRTG Tyre Crane is composed of gantry, lifting trolley, crane travelling mechanism, cab and electric control system. The gantry is of boxed-shape structure, the girder is bias track double girder and the leg is Type U.Hot Sale Rubber Tyre Gantry Crane, RTG Tyre Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.Detailed PhotosMain Features 1. Adopt box-shaped double beam welding structure to increase the working space and facilitate transportation, installation and maintenance. 2. The trolley adopts the special conductive device of rail and cable. 3. Parts standardization, serialization and generalization. 4. There are two types of crane power supply: cable drum type (divided into left end and right end) and slidingcontact line type (divided into left end and right end), which are available for users to choose. 5. The driver's cab has a wide field of vision and is equipped with a linkage console for flexible, smooth and comfortable operation.According to the requirements of users can also be set up fans, hot air, cooling fan, air conditioner, walkie-talkie and so on.Product Parameters

Lifting capacit			30 ton
Lifting height			10 m
Span			8 m
Crane travelling mechanism	Working speed		20m/min
	Motor	Type	ZDY 23-4
	Reducer		LDA
	Wheel diameter		400mm
Electric lifting mechanism	Model of electric hoist		Wire rope electric hoist
	Lifting speed		3.3m/min
	Lifting height		6m
	Traveling speed		20m/min
	Lifting motor		ZDX52-4 ZD41-4
Working class			M3
Voltage			380v50hz3p
Mode of operation			Remote control
Crane total weight			10 ton

Certifications

Company Profile

Henan Eternalwin Machinery Equipment Co.,ltd,established in 1998 ,located in crane hometown,which integrates the R&D ,manufacture,sales ,installation and service of all kind of overhead crane , gantry crane ,ship crane ,spider crane ect lifting equipment . Our products have been famous all over the world , such as overhead crane ,gantry crane ( rail mounted gantry crane,RTG gantry crane ,quay crane ) ,ship crane , spider crane ,jib crane ,hoist ,winch and so on. Eternal win has been "qualityfirst"as a core foundation ,which deploys advanced facilities of the domestic and international brand,owns professional R&D term with more than 600 people.The team is the largest R&D term in China's general crane industry ,and has won over 80 national provincial man municipal scientific achievements, which lays a solid foundation for producing high quality products. Eternal Win adheres to " customer-oriented" marketing concept ,owns strong sales term and after service power,who always is ready to provides quality service to our customers Eternal Win insists on the principle of "delicate manufacture,continual improvement,seeking superiority,satisfying customer"and by absorbing management essence home and abroad ,introducing first-class talents,implementing first-class management and manufacturing first-class products .Sincerely cooperating with all the peoples from all walks of lift to realize mutual benefit

Customer VisitFAQ

Q 1: WHAT DO I NEED TO OFFER WHEN PURCHASING CRANES FROM YOU?
There are some necessary parameters about the cranes so you can tell us the lifting height,loading weight,span and other details you have. We can offer you a best solution.
Q 2:WHAT PAYMENT METHODS DO YOU HAVE?
You can choose the best way to pay and we have many kinds payment method ,such as westlink, paypal, L/C, T/T. Don't worry about this problem.
Q 3: WHAT AFTER-SALE SERVICE CAN YOU OFFER?
We are a professional machinery company so we will offer 24/7 service and whenever you have any doubts just contact us. We are happy to help you fix them.
Q 4: WHAT TRADE TERMS DO YOU USE?
We often use FOB price and we can change according to your requirements.
Q 5: HOW TO SHIP?
The most often shipment method is by sea,which is cheaper than by air. It depends on clients' decision. We will try our best to help you.
